Ladle Turret Weighing System

Application

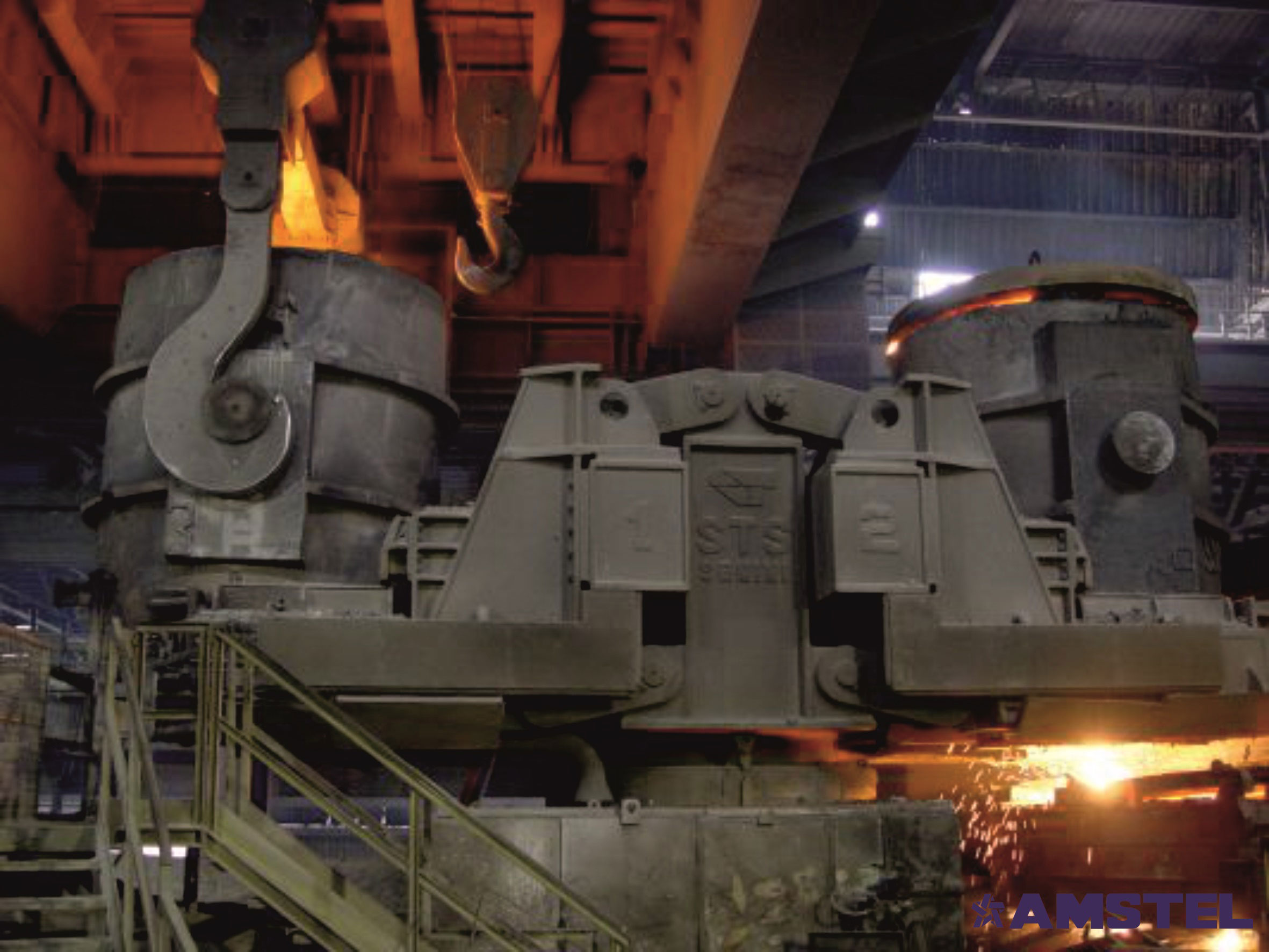

The Ladle Turret Weighing System represents one of the major important elements of modern steel production. It holds the steel teeming ladles, which can weigh up to 300t. By means of the ladle turret, the steel teeming ladles are alternately slewed into pouring and charging positions. This function ensures the uninterrupted operation of the CC machine. While one ladle is being emptied, a full ladle is provided on the other side. The weighing system inside the turret allows control of the level of liquid steel inside the ladle and ensures precise flow. The caster turret arm ladle weighing systems, weigh the ladle while in both the cast position and the load position. Scales are designed to fit existing arms with high temperature load cell weigh modules. Scales are designed and manufactured to meet our customer's specific requirements. They are manufactured for the prevailing harsh ambient conditions. They are not affected by shock, interfering forces or huge fluctuations in temperature. The high-temperature load cell weigh modules are suitably designed with wire or wireless interconnectivity.

Features

  • Suitable for tough environmental conditions
  • High resistance to the influences of temperature
  • Operating temperature range up to 200 deg. C
  • Customized high temperature load cell weigh modules with wire or wireless inter connectivity
  • High accuracy and reliability
  • Simple design and assembly
  • Minimum number of installed parts
  • Optional wireless weight data transfer to ground level control room by RS-232 / RS-485 / 4-20 mA analog output
