Electronic Weighbridge

The platform consists of I-beams for trouble free operations year after year. Depending on the space available , both pit type and pit less designs are available. The digital load cells are pre-calibrated at full load capacity to prevent manual labour required to lift and place standard weights for cornering and calibration. This allows for an installation time of less than 8 hours and helps shorten project lead time.

pic1
pic2

Double ended shear beam load cells

The simple, compact design and rugged hermetically sealed construction of the load cell assures long life. The technologically advanced spherical ball mounting arrangement ensures high accuracy & reliability to weight measurement and smooth performance of the load cell. The mounting design allows the weighbridge to automatically restore to the vertical axis once the truck comes on the weighbridge.

pic3
Model ATB
Size of platform 7.5M X 3M, 9M X 3M, 12M X 3M, 16M X 3M, 18M X 3M
Capacity 40T, 50T, 60T, 100T, 120T, 150T
Graduation 5kg, 10kg, 20kg
Type of load cell Double ended shear beam with IP 68 protection
Accuracy As per OIML R-76, Class III - Medium
Type of platform Steel based and concrete based
Auxiliary outdoor display 25mm to 100mm seven segment red LED

Weigh Terminal

  • User- friendly electronic weigh terminal to make work simpler and faster.
  • Suitable for harsh and dusty environment
  • Virus free unlike PC based system
  • Good visibility - backlit alphanumeric LCD and 7 segment red LED display
  • Factory calibration restore function
  • Effective truck data management system with high data storage of over 1500 records with processing and retrieval facility
  • Printer connectivity for reports and weighment slips.
  • Allows customer entry of material, supplier and vehicle details
  • Standalone operations without connecting to PC
  • PS2 keyboard connectivity for faster data entry
  • RS 232 interface
  • USB port for data storage in pen drive
  • Optional SMS alert facility
pic4

Weigh Terminal Front View

pic4

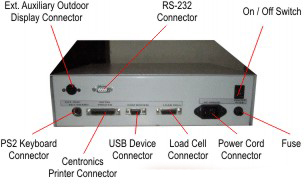

Weigh Terminal Back View

Weigh Soft

  • Windows based weighbridge data management software for PC
  • Modified version for unmanned weighbridge system
  • Separate reports like material-wise, party-wise, supplier- wise
  • User can define data fields to be captured for the weighment slips
  • Allows entry of material, supplier, vehicle, and shift detail
  • Generation of consolidated complete and incomplete weighment report
  • View reports based on specific queries
  • Well-defined security mechanism for different levels of users
  • Web camera integration
  • Compatible to ERP/SAP

Unmanned Weighbridge System
