Application

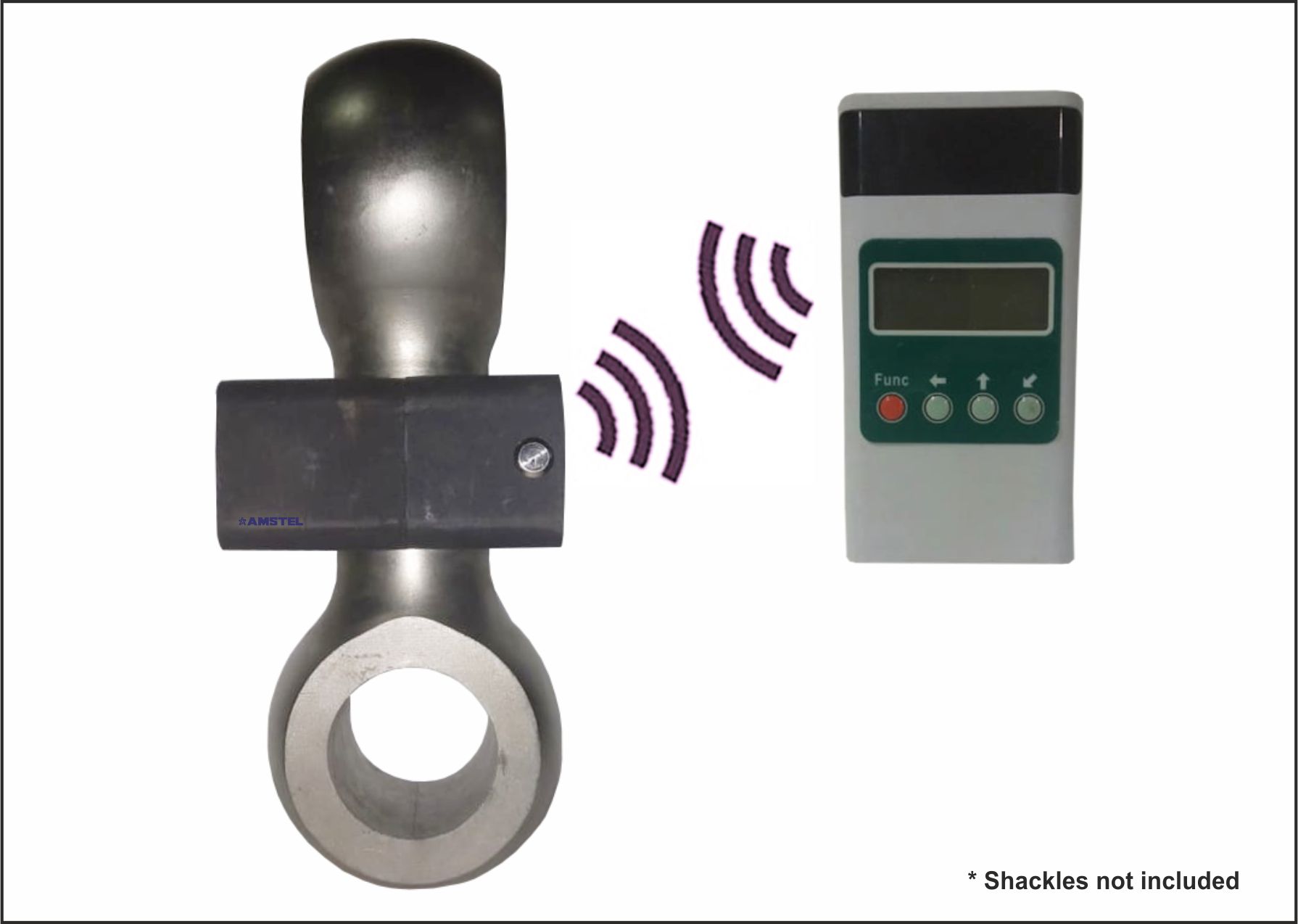

The Radiolink Shackle Type Wireless Dynamometer is ideal for weighing and lifting applications such as with cranes, hoists that may not lend themselves to standard cabled load cells - where the cable could get damaged or where it may not be safe to be close to the load cell during a lift. When used with the wireless Handheld LCD Indicator, the load cell has a wireless communication “line of sight” range of 100 meters depending on the environment. The load cell is manufactured from heat treated alloy steel and is sealed to IP65 making it suitable for use outdoors.

Features

• Initial calibration fully traceable (certified) and 200% of capacity proof load (certified)
• Capacities from 5T to 300T
• Combined error of +/- 0.1% F.S.
• Wireless transmission in free band as specified by Wireless Planning Commission, Govt. Of India.
• Load cell battery life approx. 300 hours to 2000 hours depending on measurement / second
• Handheld Indicator battery life approx. 100 hours
• Wireless " line of sight " range approx. 100 meters
• Customized shackles as per IS specifications
• Error free data transmission
• Audible overload alarm
• Selectable display unit
• Power supply with 1.5 V " AA" batteries
• Wide temperature range -25°C to +80°C for load cell
• Safe overload 200%
• Ultimate overload 500%
• Exceptionally small dimensions for low headroom loss
• Handheld Indicator having LCD display with zero, peak hold, overload alarm, low battery indicator, gross or net,
• Measuring unit and user calibration facility
• Optional Handheld Indicator accepts up to 8 load cells and summing
• Optional carry case and wooden case for 100Tand above
• Optional rechargeable batteries with charge
